6" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe

Name: 6quot 304 Stainless Steel Johnson Wire Wrapped Screen Pipe
Brand: HengYuan
Price: 1 USD

6" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe Manufactures

Brand Name : HengYuan

Model Number : HY-11

Certification : ISO, SGS, CE, CIQ

Place of Origin : Anping, Hebei, China

MOQ : 1 piece

Price : Negotiated price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1500 pcs /month

Delivery Time : 7 days

Packaging Details : wooden boxes,container

Name : 2507 Stainless Steel Johnson Wedge Wire Screens For Filteration

Material : Low carbon galvanized ,stainless steel

Length : Upto 6000mm

Diameter : 29-1200mm

Technique : Full welded

Features : Non-clogging

Application : Filteration

Package : Wooden boxes,container

slot type : slot

wire type : V wire

support wire : v wire

usage : liquid filter

Contact Now

6" 304 Stainless Steel Johnson Screen pipe

Wedge Wire		Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod		Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot Size		0.015, 0.020, ...0.10, 0.15, 0.20, 0.25, 0.30...6.00mm also achieved upon request.
Material		galvanized low carton (LCG), stainless steel (304,316 etc.)
Length		up to 6 meters.
Diameter		from 20mm to 1200mm.
End Connection		Plain beveled ends, flanged or threaded couplings

Features of Johnson wire wrap screen

• They are non-clogging

• Self-supported and rigid

• Very long lifetime

• Reliable and consistent filtration rating

• All metallic construction (non-metallic also possible like PP)

• Easy to clean smooth filtering surface

Specification (wedge wire):	Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):	Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size	0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request.
Material:	galvanized low carton (LCG), stainless steel (304,316 etc.)
Length	up to 6 meters.
Diameter	from 25mm to 1200mm.
End connection	Plain beveled ends, flanged or threaded couplings

6" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe

Product Tags:

Johnson Wire Wrapped Screen

SS304 Wire Wrapped Screen

6" johnson vee wire screen

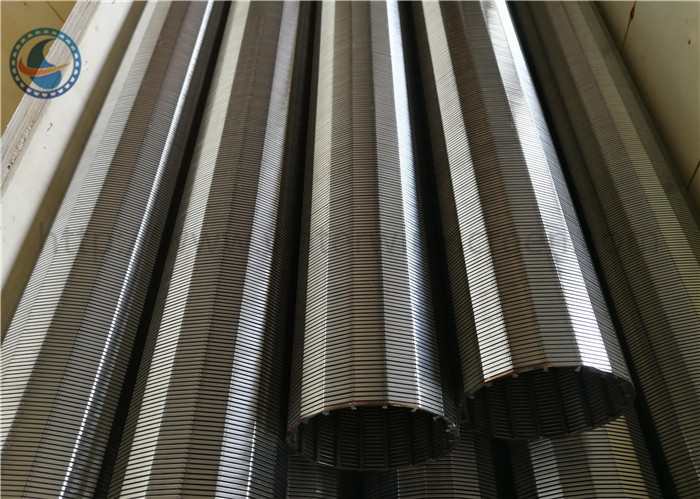

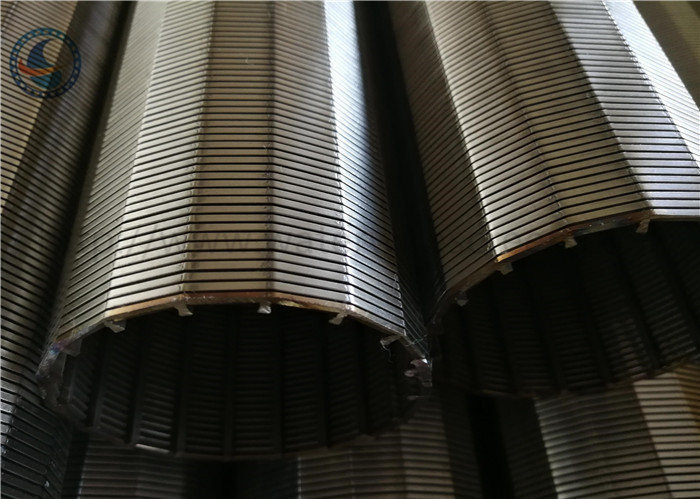

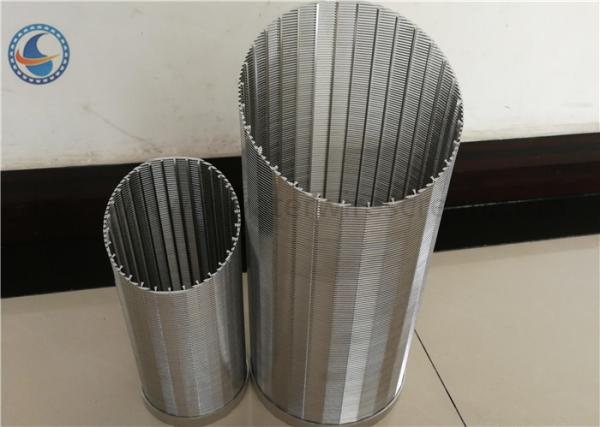

6" 304 Stainless Steel Johnson Wire Wrapped Screen Pipe Images
