Non Magnetic Ss Sand Control Screens 3000mm Length 10" Diameter

Name: Non Magnetic Ss Sand Control Screens 3000mm Length 10quot Diameter
Brand: Heng Yuan
Price: 1 USD

Non Magnetic Ss Sand Control Screens 3000mm Length 10" Diameter Manufactures

Brand Name : Heng Yuan

Model Number : HY121704

Certification : ISO,CIQ,CE, FORM E etc

Place of Origin : Hengshui city,Hebei,China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Moister-Barrier with each piece,64 pcs per 20 ft container

Name : Wire Wrapped Screens

Material : Non-Magnetic Stainless Steel

Length : 3000mm

Diameter : 10" (273mm)

Slot size : 1.5mm

Wire : 3.0*5.0mm Vee-Wire

Support rod : ø4.2mm round wire

End connection : Bevel welded rings

Feature : Corrosion Resistance

Welded type : Full welded

Collapse strength : 100 bar

Tensile strength : 30 tons

Contact Now

Non-Magnetic Stainless Steel Wire Wrapped Screens For Sand Control

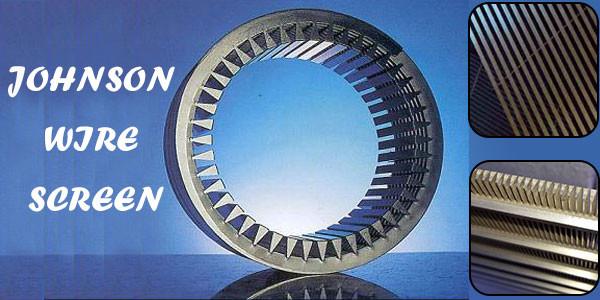

Wire Wrapped Screen,also called Johnson screen,wedge wire screen,Johnson, wound screen, slotted screen.
Wire Wrapped Screens are made of triangle or wedge wire surface profiles with continuous slots which supply large open area for filtration.

Wire wrapped screen is a filtering device that serves as the intake portion of wells constructed in unconsolidated or semi-consolidated aquifers. The screen permits water to enter the well from the saturated aquifer, prevents sediment from entering the well, and serves structurally to support the aquifer material.

Selection of Slot Size, The screens purpose is to:

1. Prevent sediment from entering the well.
2. Support unconsolidated formations or gravel pack.
3. Allow formation development
4. Minimize clogging.

Selected slot size must give optimum open area: Too small could easily block, too large would allow particles through.

Wire Wrapped Screen Sizes:

Material: stainless steel wire or galvanized wire.
Surface profile: triangle wire.
Support profile: triangle wire, round bar and wedge wire.
Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14"
Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
Maximum collapse strength: 150 bar.
Maximum tensile strength:40 tons.
Connection type: Bevel welded rings; male/female threaded coupling.
Wire Size: 2.2*3.5mm, 3*4.6mm, 3*5mm, 3*6mm, 4*7mm etc. Also can make other sizes as your request.
Support rods size: ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.

Wire Wrapped Screen Regular Specification:

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH(BAR)	TENSILE STRENGTH(TON)	WRAP WIRE (WIDTH*HEIGHT)(MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	4.0MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.2MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.2MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.8MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.2MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.2MM/59
