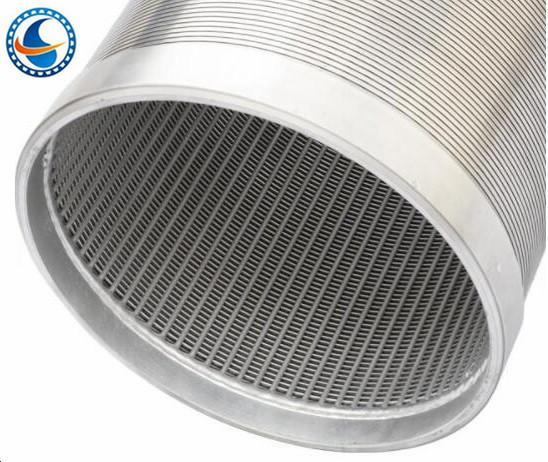

Vee Continuous Slot Wire Wrapped Screen For Deep Well Drilling

Name: Vee Continuous Slot Wire Wrapped Screen For Deep Well Drilling
Brand: Heng Yuan
Price: 1 USD

Vee Continuous Slot Wire Wrapped Screen For Deep Well Drilling Manufactures

Brand Name : Heng Yuan

Model Number : HY122008

Certification : ISO,CIQ,CE, FORM E etc

Place of Origin : Hengshui city,Hebei,China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Plastic film, 49 pcs per 20 ft container

Name : Wire Wrapped Continuous Slot Johnson Wire Screen

Material : Stainless Steel Grade 304

Length : 3000mm

Diameter : 8" (219mm)

Slot size : 1.0mm

Wire : 3.0*5.0mm Vee-Wire

Support rod : ø4.2mm round wire

End connection : Bevel welded rings

Feature : Corrosion Resistance

Welded type : Full welded

Collapse strength : 85 bar

Tensile strength : 30 tons

Contact Now

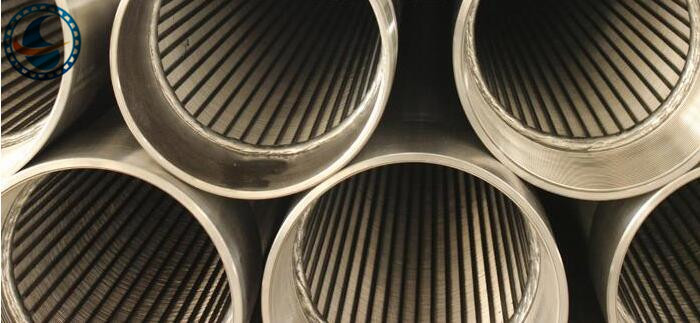

Wire Wrapped Continuous Slot Johnson Wire Screen

Wire Wrapped Continuous Slot Johnson Wire Screen,also called Johnson screen,Wedge wire screen, Wound screen, Slotted screen,Vee wedge wire screen filter strainers,deep well water pipes.

Wire Wrapped Continuous Slot Johnson Wire Screen with high quality are manufactured by a or the v wedge shaped wire around an internal array of longitudinal support rods. With the advanced all-weld technology, the each interesting point makes construction robust and mechanical performance excellent. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening and larger filtering area, hence the screen allows water(oil) to enter your well freely and smoothly in ample quantities, while keeps sand and gravel out of the well. The slots can be changed according to different strata.

Wire Wrapped Continuous Slot Johnson Wire Screen Sizes:

Material: stainless steel wire or galvanized wire.
Surface profile: triangle wire.
Support profile: triangle wire, round bar and wedge wire.
Slot size: 0.05 mm - 35 mm.Normal slot : 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
Cylinder diameter: 10 mm - 1200 mm. Normal Diameter:2", 3", 4", 6", 8", 10", 12", 14"
Length: up to 6 m. Normal length:2.9m and 5.8m to fit container.
Maximum collapse strength: 150 bar.
Maximum tensile strength:40 tons.
Connection type: Bevel welded rings; male/female threaded coupling.
Wire Size: 2.2*3.5mm, 3*4.6mm, 3*5mm, 3*6mm, 4*7mm etc. Also can make other sizes as your request.
Support rods size: ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.

Wire Wrapped Continuous Slot Johnson Wire Screen Regular Specification:

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH(BAR)	TENSILE STRENGTH(TON)	WRAP WIRE (WIDTH*HEIGHT)(MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	4.0MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.2MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.2MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.8MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.2MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.2MM/59
