Schroeder Wedge 89mm Wire Wrapped Screen Strainer To Filter

China Schroeder Wedge Wire Wrapped Screen Tube For Filter

Description:

China Schroeder Wedge Wire Wrapped Screen Tube For Filter s composed of V-shaped wire and support bars. It adopts the world's advanced full-wound welding production process. Each intersection is connected by welding, with a solid structure and good mechanical properties. The V-shaped profile avoids clogging while keeping the water flowing. The continuous gap has a larger water-passing area, and at the same time reduces the infiltration rate of groundwater, prevents sand from entering the pipe under large water pressure, and has better sand filtration. The gap can also vary according to different geology.

Product advantages:

1. Non-blocking: The cross-section of the screen surface wire is trapezoidal (also triangular), and the gap on the screen tube is formed by two adjacent acute angles on the two surface wires. The two sides form point contact, so theoretically, the solid particles on the screen are either trapped on the screen or pass through the screen gap, and it is impossible to form the third blockage state. This is very important for reducing the operating resistance of the equipment, maintaining good hydraulic distribution characteristics, and enhancing the backwash effect of the resin.
2. High strength: Because this element adopts a welded structure of stainless steel wire, it has high strength. This screen can be cut on a grinding wheel cutting machine, or the end face can be processed on a lathe without causing loosening. deformed.
3. Large flow rate: This screen tube has relatively small resistance. Compared with plastic filter elements with similar dimensions, its flow area is greatly increased. Therefore, under the same resistance, the flow rate is significantly increased. In other words, with the same output, the number of water filter cartridges used can be reduced accordingly.
4. Good adaptability to temperature changes: Obviously, compared with ordinary plastic filter elements, the temperature application range of Schroeder stainless steel wire-wound screen is much wider than that of plastic filter elements.
5. Adjustable gap: Different users, using different filter equipment and filter media, have different requirements for the wire winding gap of the internal wire winding screen. Since this screen is continuously wound and welded on special equipment, the gap between the stainless steel trapezoidal wires can be adjusted. In this way, the needs of different users can be met without increasing the cost, and the plastic filter element must be re-made to adjust the gap, so it is not easy to meet the special needs of users.
6. Corrosion resistance: As mentioned above, there are mainly three kinds of materials for domestic stainless steel screens, and these three materials can fully meet the requirements of various current water treatment processes. For neutral water, acidic water, alkaline water, regenerant caustic soda, hydrochloric acid, sulfuric acid, salt, etc., as long as these materials are selected reasonably, various types of filtration equipment can be operated economically and safely.

Filter precision conversion

Delivery details :

1. For small quantity, shipped by courier.Tracking number will be emailed to you after order has been shipped.
2. For large quantity, shipped by air or by sea. (According to your request)
Will send the documents to you timely.

schroeder wedge wire mesh

schroeder wire wrapped screen

strainer wire wrapped screen

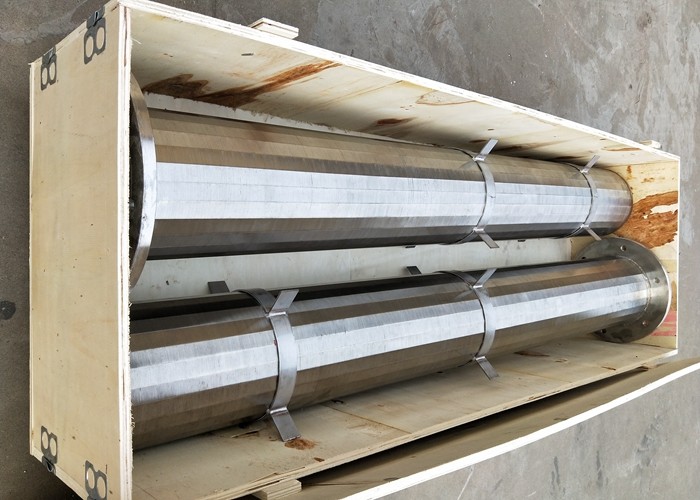

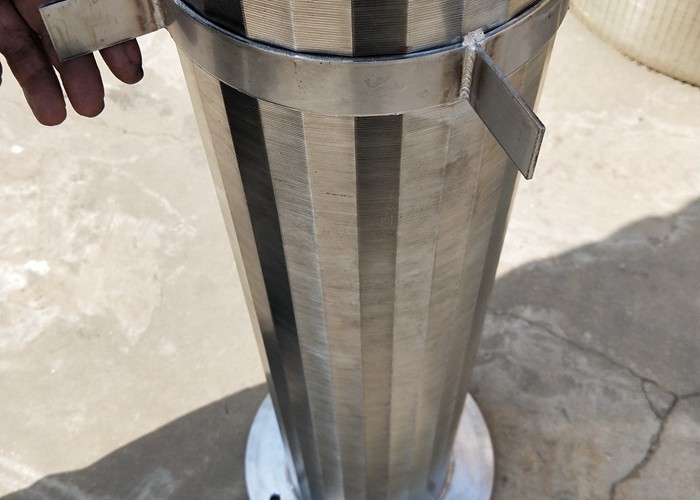

Schroeder Wedge 89mm Wire Wrapped Screen Strainer To Filter Images
