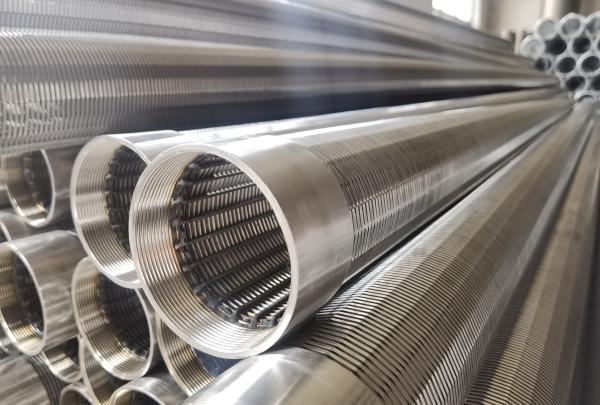

Stainless Steel 304 Wedge Wire Wrapped Screen Filter Cartridge
Wedge Wire Wrapped Screen Filter Cartridge Description:
The stainless steel wire wrapped screen filter is a kind of metal mesh structure element used for screening and filtering.
Wedge Wire Wrapped Screen Filter Cartridge Process:
Made of stainless steel wire by special equipment forming and welding.
Wedge Wire Wrapped Screen Filter Cartridge features:

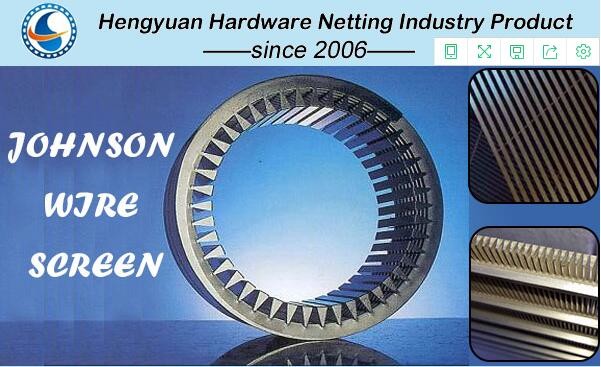

1, Not jam: silk screen face cross section is a triangle, screen two root surface cracks on wire on the adjacent two acute form, solid content through the sieve tube, and two sides of the gap form point contact, therefore, in theory, on the screen of the solid particles or trapped on the screen, either through the sieve tube aperture, impossible to form a third congestion state. To reduce the operational resistance equipment, maintain good water distribution characteristics, resin backwashing are very important.
2, The intensity is high, because of this component is made form the stainless steel wire around the welding structure, so it is of high intensity, the screen can be cut on the grinding wheel cutter, can also be on a lathe processing loose end face and does not cause deformationT
3, Large flow: the screen has a smaller resistance, compared with the similar size shape of the plastic filter, greatly increased the flow area of it, so under the same resistance, flux flow rate increased. In other words, under the condition of the same output, the use of filtering cartridge number can be reduced accordingly.
4, Good temperature adaptability: obviously compared with the ordinary plastic filter, the temperature of the stainless steel wire wrapped screen has a much wider scope than plastic filter.
5, Clearance adjustable: different users, using different filtration equipment and filter medium, the internal wire wrapped screen wire spacing requirements are different. Because this is a screen on the device continuously around the weld, and so the trapezoidal stainless steel wire between the clearance can be adjusted. In this way, without any increase in costs under the premise of suitable for the needs of different users, and the plastic filter to adjust the gap to make mould, so it's not easy to apply the user's needs. Small gaps can reach 20 microns.
6, The corrosion resistance: for neutral water, acid water and alkaline water, hydrochloric acid, sulfuric acid, salt, etc., appropriate chooses the material, can economic and security operation of filtering equipment.
Connection mode: welding ring, threaded connection, flange connection
Material: 304304 L, 321316 L, 2205904 L, hartz alloy, etc.
Strengthening way: punching pipe, cross, flange ring.
Wedge Wire Wrapped Screen Filter Cartridge Regular Specification:
| Name: Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen, Screen tube,Slotted tube,Wound screen,Continuous slot screen fiter,Sand control screen, Wedge wire screen pipe, Rotary fiter drum,Oil screen. |
| Material: Stainless steel 304,316L,Non-magnetic SS, Low carbon galvanized,904L,Duplex steel elc. |
| Diameter: From 29-1300mm (Normal diameter is in the below table) |
| Slot: From 0.1-100mm (Normal slot 0.5mm,0.63mm,0.75mm. 1.0mm.1.5mm, Pls refer to below table) |
| Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to ft container) |
| Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3'4.6mm,35mm, 36mm,36.5mm,3.2*6mm; 4*7mm etc; |
| Support rod:o3.0-06.0mm round wire;Also can be Vee-shaped wire. |
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc. |
| Use:Water WelI,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc. |
sizes
(inch) | OD
(mm) | slot
(mm) | Length
(m) | Tenslile
strength | collapse
Strength | wrap wire
vee-shaped wire (mm) | support rod
Round wire (mm) |
| 3-1/2 | 88.9 | 1 | 2.9 | >22 | 10.2 | 2.2"3.5 (Widthheight) | 3.8MMx22 |
| 4-1/2 | 114.3 | 1 | 2.9 | >28 | 11.5 | 2.2"3.5 (Width-height) | o3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.2*3.5 (Wiatn*heignt) | o3.8MM×32 |
| 6-5/8 | 168.3 | 1 | 5.8 | >33 | 12.8 | 2.23.5 (Wiatn"neignt> | o3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.2"6.0 (width"heignt) | o6.OMM×32 |
| 8-5/8 | 219.1 | 1 | 5.8 | >34 | 21.9 | 2.3*3.5 (Width*height) | o3.8MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >50 | 38.2 | 3.0*5.0 (Width*height) | o4.0MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >60 | 46 | 3.26.0 (widthheight> | o5.0MMx48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 9 | 2.2*3.5 (Widthheight> | o4.0MM×55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >60 | 39.5 | 3.0*4.6 (Width height) | 4.8MMx55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >100 | 48 | 3.2*6.0 (Width*height) | 05.0MM×55 |
| 12-3/4 | 323.9 | 1 | 5.8 | >120 | 37.2 | 3.0*5.0 (Width*height> | 4.0MMx56 |
| 14 | 355.6 | 1 | 2.9 | >80 | 37.8 | 3.0*5.0 cWidthheight | 4.0MMx59 |
| 16 | 426 | 1 | 2.9 | >80 | 37.5 | 3.05,0 (Wiatnheight) | 04.OMM×64 |

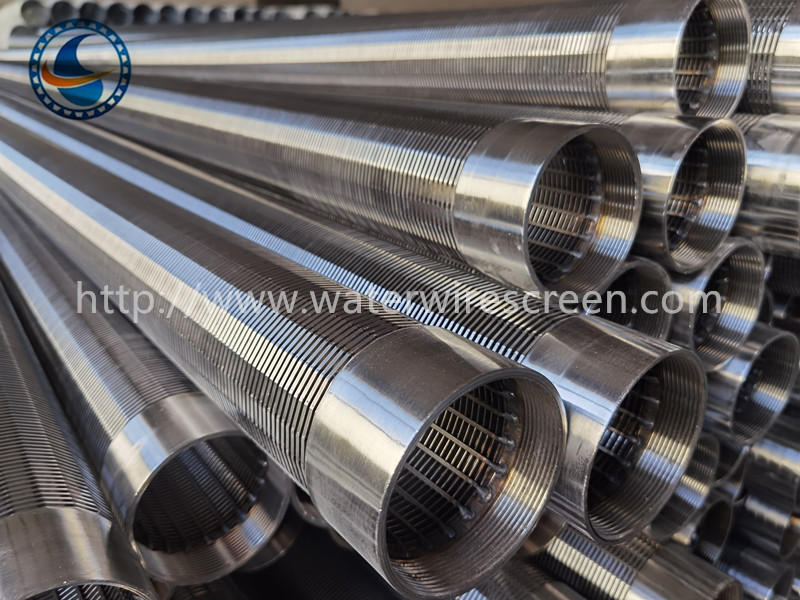

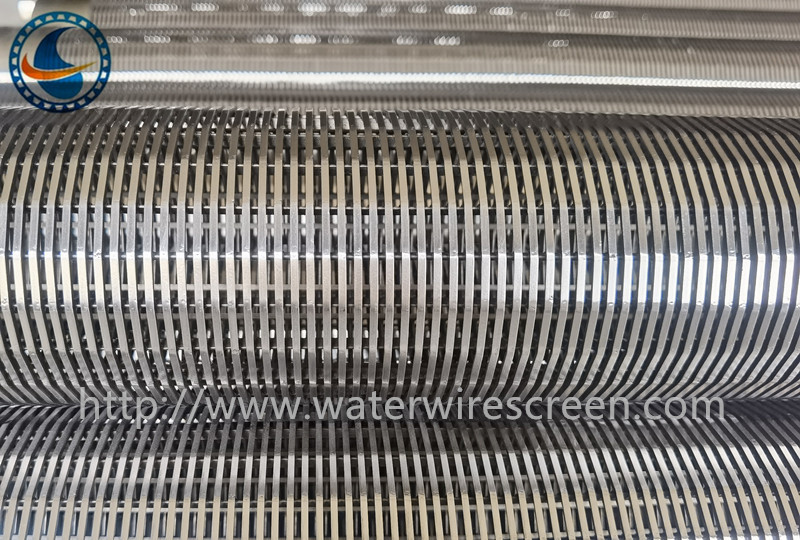

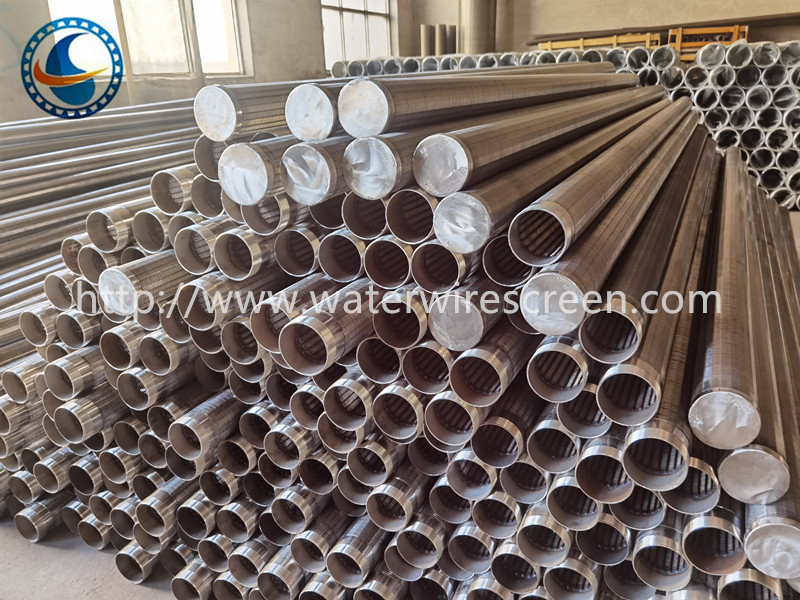

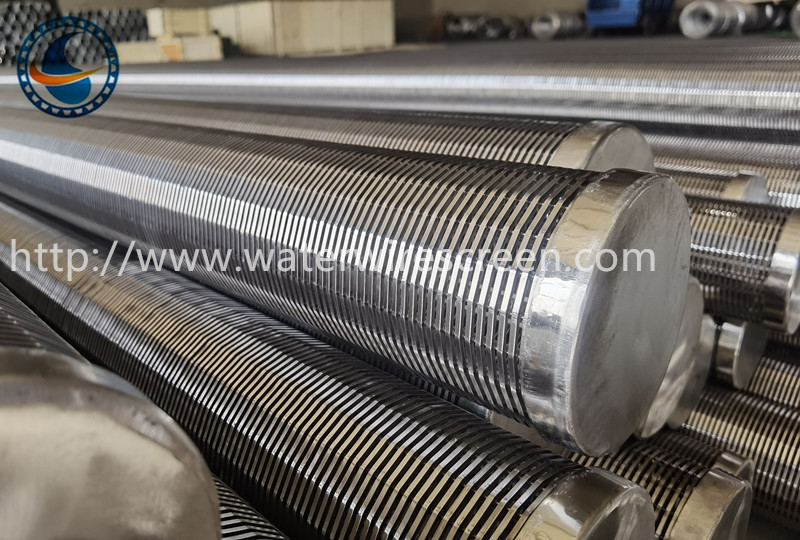

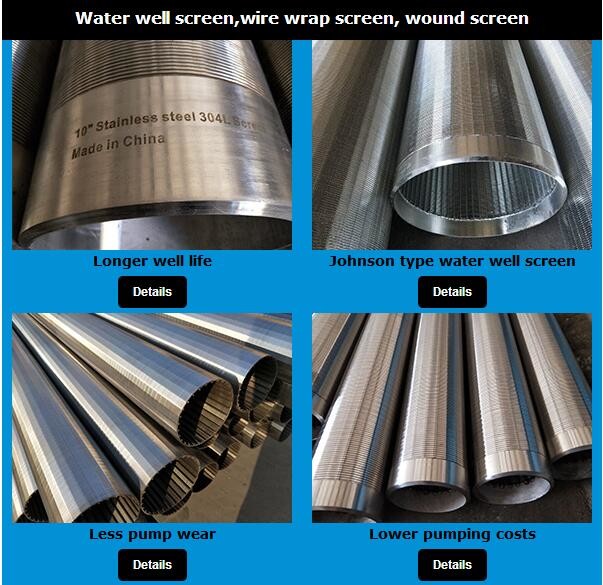

Wedge Wire Wrapped Screen Filter Cartridge Pictures:
