Reverse Johnson Screen Suit To Back Flush Rotary Screen Drum Stainless Steel
Product Description:
Stainless Steel Back Flush Screen consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. There are two types of the screen, inside circle wire and the inside veritical wire. The slot is circle or vertical too. The type can be made by the customer's requirement to suit to your filter function better.
This screen cylinder is especially suitable for extruding machine with rotating blade inside the screen.
.
Specification:
| Material | Stainless steel |
| Grade | 304 |
| I.D | 150-1000 mm, 520 MM |
| Slot Size | 0.1 - 30 mm, 0.75 mm |
| Components | None |
| Length | 300-3000mm, 700 mm, |
| Filter type | From inside to outside |
| Wire size | 2*3.5 mm |
| Support rod | 3*4.6 mm |
| Wire shape | V shape |
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.
| SIZES OF THE WIRE AND ROD |
| Wire | | | | | | |
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.3 | 3.0 | |
| Height(mm) | 2.0 | 2.2 | 2.5 | 3.5 | 4.6 | |
| Rod | | | | | | Round wire |
| Width(mm) | 2.3 | 2.3 | 3.0 | 3.7 | 3.3 | Diameter |
| Height(mm) | 2.7 | 3.5 | 4.6 | 5.6 | 6.3 | 0.25-0.5m |
Special specification can be made according to your need.
Characteristic:
1. The Screen drum was made by rods and wrapped wires, of which the rods can be V Shaped profile or wedged profile, the wrapped wire is V shaped.
2. With precise slot size, high filtration accuracy is assured
3. Firm structure, heat and corrosion resistance, very good mechanical performance
4. Long life span, safety and reliability, can be used as the filter of various medium.
Industry:
- Water treatment including drinking and photographic use as well river water, sea water
- Food and drink industry beverage and food products
- Urban water treatment
- Bright quenching and cutting fluids
- Fruit and vegetable dehydration
- Chemical and petroleum industry, plating solutions, oils and distillates, industrial liquids of every kind
- Solid liquid separation, livestock manure dehydration

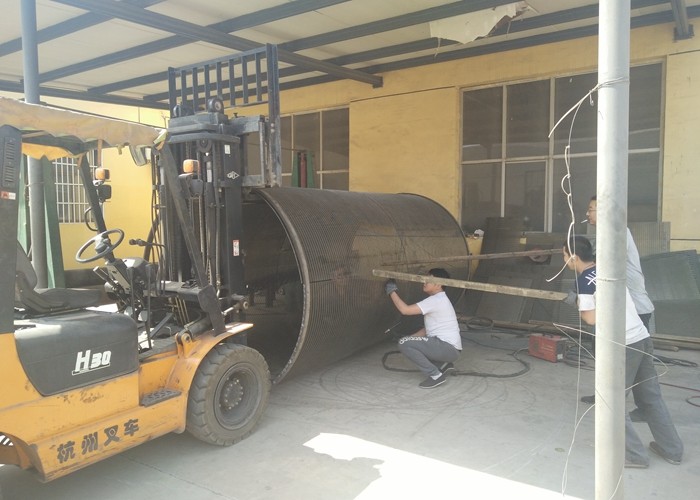

Pictures:
