Stainless Steel Johnson Wedge Wire Drum Screen For Mechanical Separation
Product Description:
Johnson screen basket is made by Johnson screen mesh through reverse welding.There are two type of the screen cylinder, the inside circle wire ( circle gap ) and the inside vertical wire ( vertical gap ) . It can be madeby customer's requirement.The liquid flow from inside to outside.
The screen basket is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.
Specification:
| Material | Stainless steel |
| Grade | 316L |
| I.D | 150-2000 mm, 650 MM |
| Slot Size | 0.1 - 30 mm, 0.75 mm |
| Components | Flange, handle |
| Length | 300-3000mm, 1100 mm, |
| Filter type | From inside to outside |
| Wire size | 2*3.5 mm |
| Support rod | 3*4.6 mm |
| Wire shape | V shape |
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.
| SIZES OF THE WIRE AND ROD |
| Wire | | | | | | |
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.3 | 3.0 | |
| Height(mm) | 2.0 | 2.2 | 2.5 | 3.5 | 4.6 | |
| Rod | | | | | | Round wire |
| Width(mm) | 2.3 | 2.3 | 3.0 | 3.7 | 3.3 | Diameter |
| Height(mm) | 2.7 | 3.5 | 4.6 | 5.6 | 6.3 | 0.25-0.5m |
Special specification can be made according to your need.
Characteristic:
The revolutionary reverse rolled slotted wedge wire screens is extremely rugged and more clog-resistant than conventional strainer elements that use perforated plate or wire mesh screens.The reverse rolled slotted wedge wire screens provide continuous debris removal from fluid piping systems that demand full time uninterrupted flow and can operate through a wide range of positive operating pressure and solids loading with effective debris removal and back washing across the entire pressure range.
Advantages:
- The Screen drum was made by rods and wrapped wires, of which the rods can be V Shaped profile or wedged profile, the wrapped wire is V shaped.
- With precise slot size, high filtration accuracy is assured
- Firm structure, heat and corrosion resistance, very good mechanical performance
- Long life span, safety and reliability, can be used as the filter of various medium.
- The CNC machine tools make the gap even and can improve the effectiveness of the filter and dewatering.
Industry:
Food and drink industry beverage and food products, urban water treatment, fruit and vegetable dehydration, water treatment including drinking and photographic use as well river water, sea water, waste dewatering treatment, used for centrifuge Industry, plating solutions, oils and distillates, industrial liquids of every kind, bright quenching and cutting fluids, chemical and petroleum industry, solid liquid separation, livestock manure dehydration.

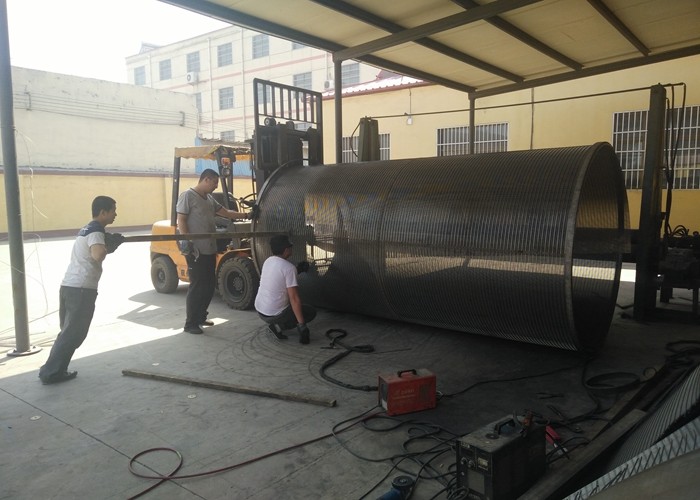

Pictures:
Package:
